LAM-564
Liquid Activity Monitor
Measurement of the volumetric activity of gamma-emitting radionuclides in process liquids at nuclear facilities under normal operating conditions.
Nuclear Facilities
Waste Management
Key Features
- Measurement of volumetric activity of gamma-emitting radionuclides in process liquids at nuclear facilities.
- Off-line monitor: samples are continuously taken from a process pipeline and routed through the monitor's measurement chamber.
- Built-in LED check source for automatic spectrum stabilisation and functional testing.
- Optional additional detector for background compensation.
- Optional safety‑classified function, Category C according to IEC 61226.
Description
The monitor is designed to measure the volumetric activity of gamma‑emitting radionuclides in process liquids at nuclear facilities under normal operating conditions. It allows measurement and display of total gamma activity and/or the activity of individual radionuclides.

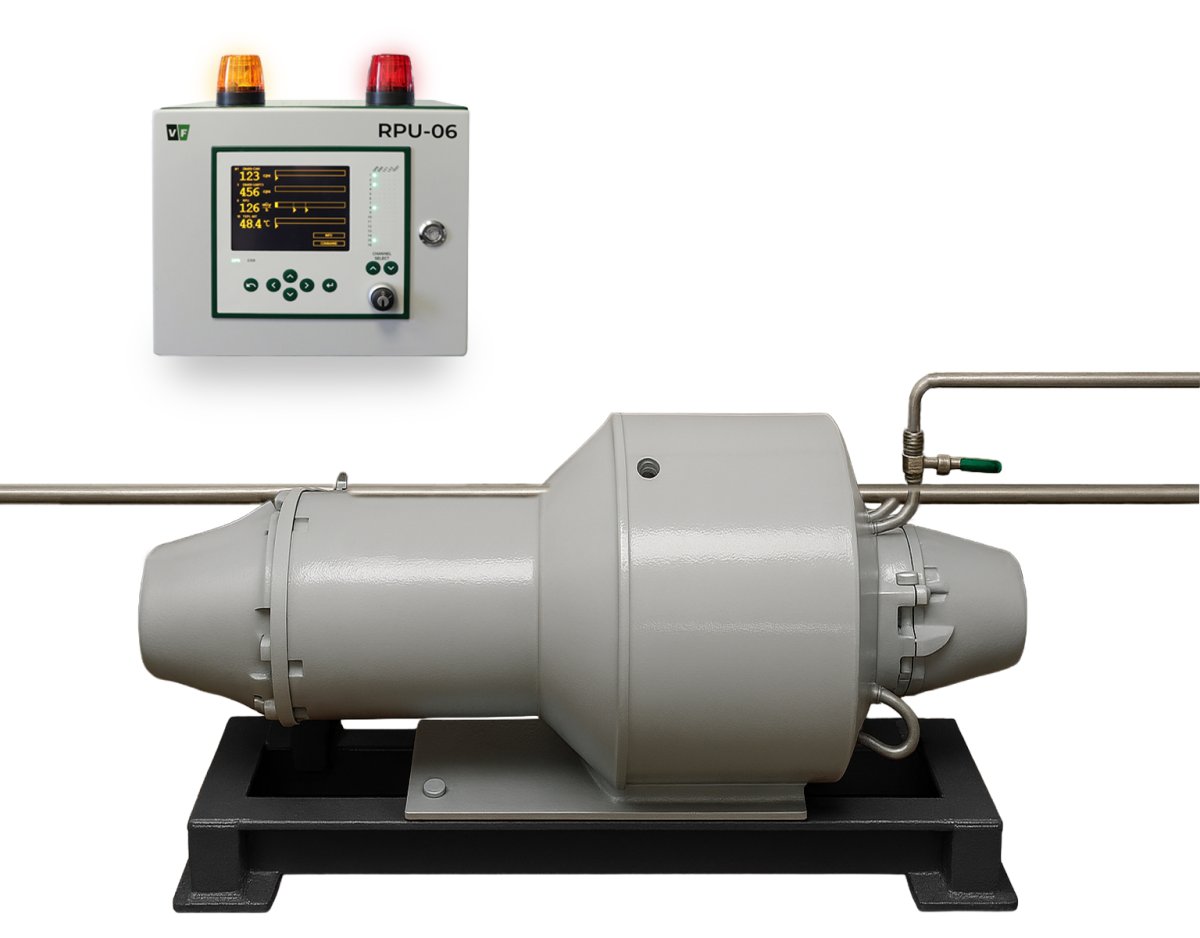

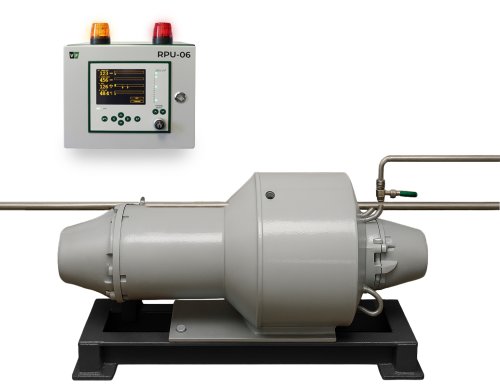

The LAM-564 monitor consists of:
- LAD-64 detector assembly, comprising:
- GD-52 gamma detector with a NaI(Tl) crystal,
- LED check and stabilisation source,
- stainless steel flow-through measurement chamber,
- lead shielding.
- RPU‑06 radiation processing unit, equipped with a DIM‑15 digital multichannel analyser configurable to 1K, 2K, 4K, or 8K channels.
Product design and specifications are subject to change without prior notice or obligation.
