LAM-544
Liquid Activity Monitor
Measurement of the volumetric activity of gamma-emitting radionuclides in process liquids at nuclear facilities under routine operating conditions.
Nuclear Facilities
Key Features
- Measurement of the volumetric activity of gamma‑emitting radionuclides in process liquids at nuclear facilities.

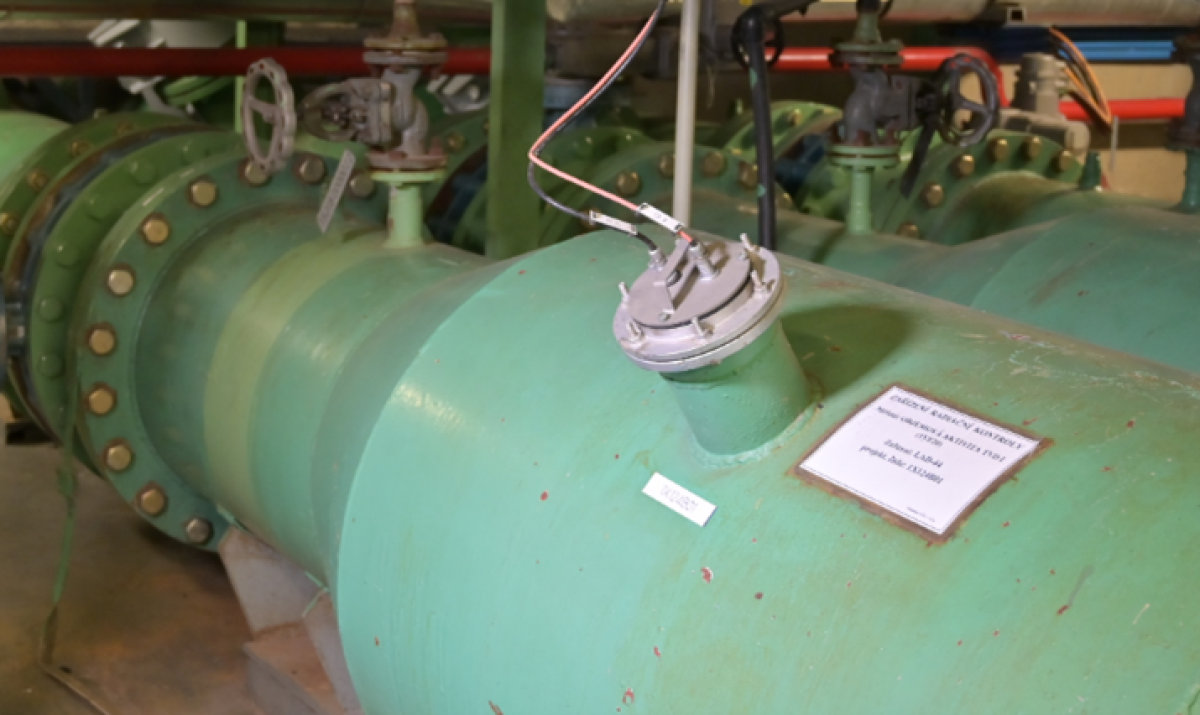

- In-line monitor type: the detector is mounted inside the measured pipeline.
- High sensitivity, low detection limits.
- Built-in LED check source for automatic spectrum stabilization and functional testing.
- Optional safety‑classified function, Category C according to IEC 61226.
Description
The monitor is designed to measure the volumetric activity of gamma‑emitting radionuclides in process liquids at nuclear facilities under routine operating conditions. The measurements are primarily intended for the detection of fission and activation products.

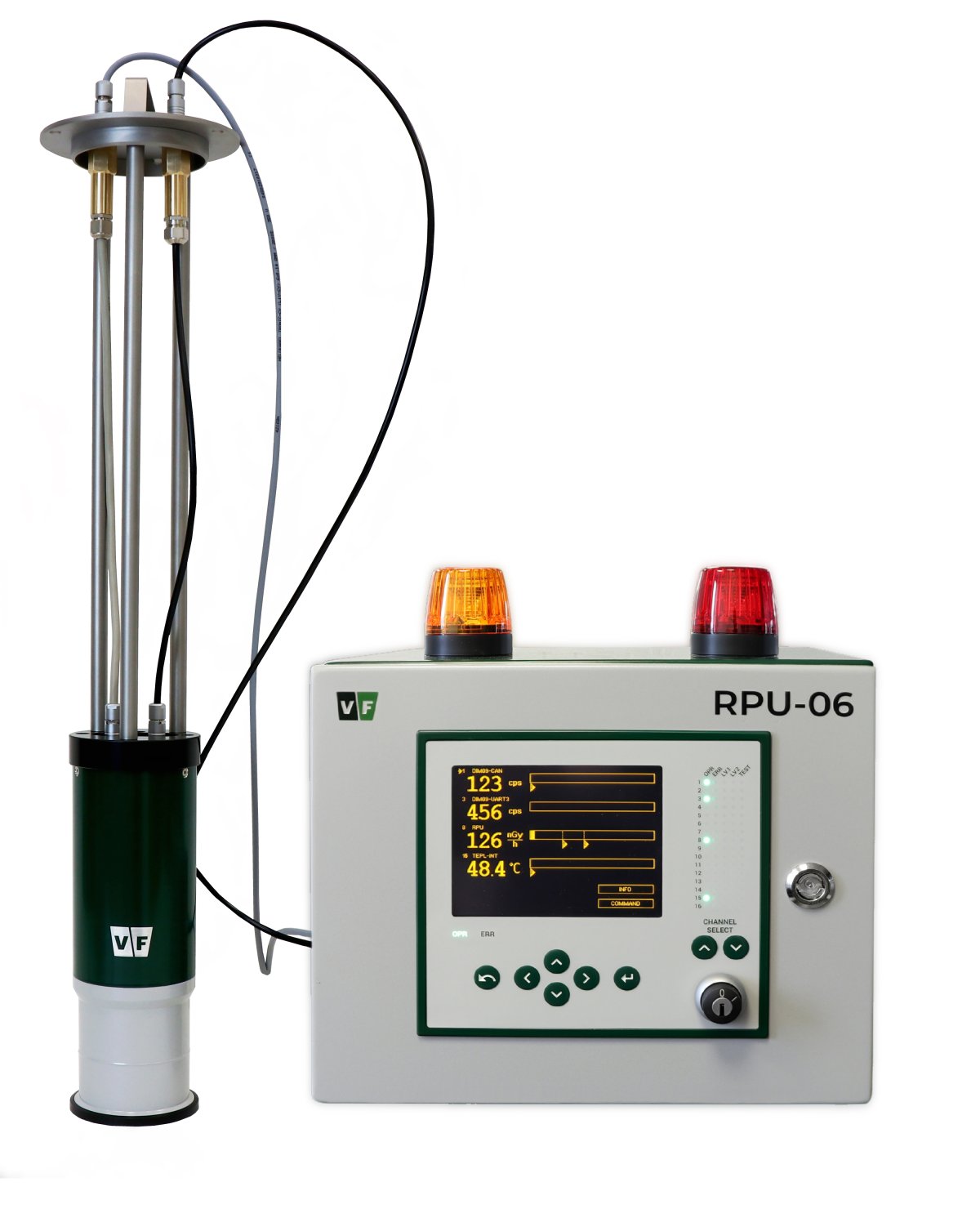

The LAM-544 monitor assembly consists of:

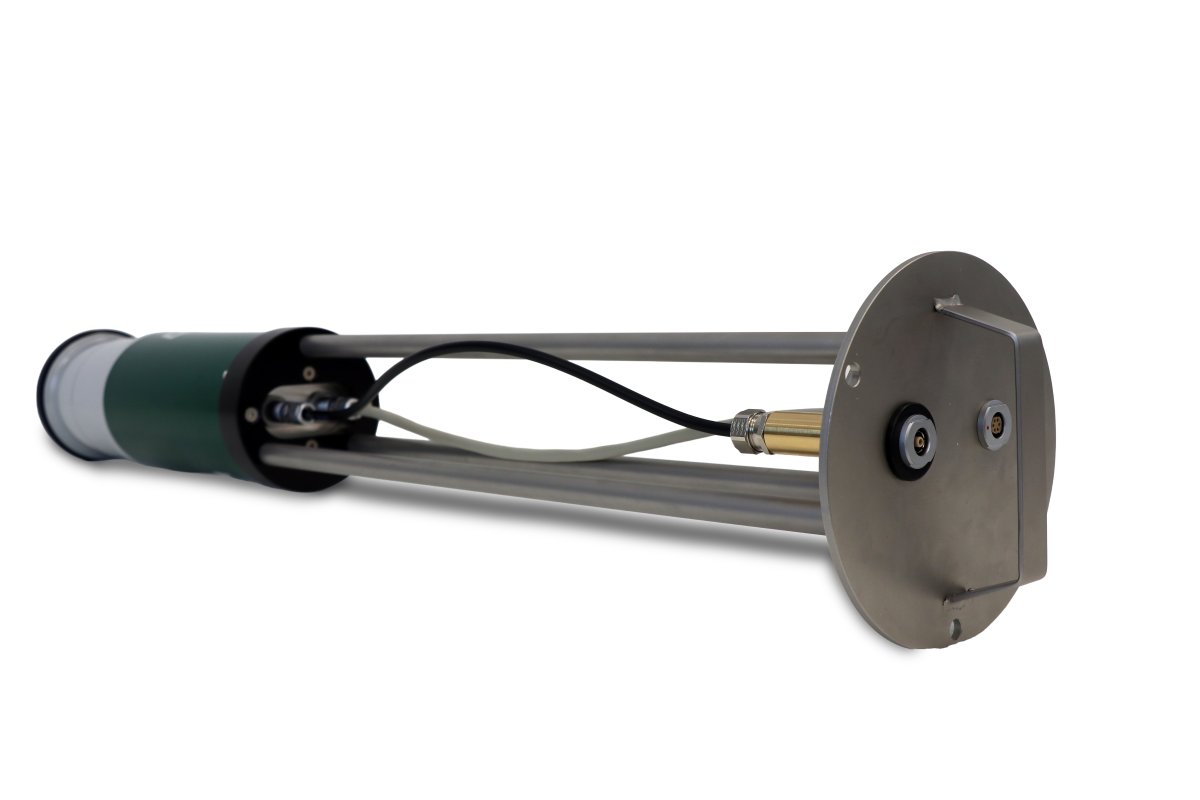

- LAD-44 detector assembly, comprising:
- GD-52 gamma detector with a NaI(Tl) crystal,
- fixture for the positioning of the detector within the process pipeline,
- LED check and stabilization source.
- RPU‑06 radiation processing unit equipped with a DIM‑15 digital multichannel analyser configurable to 1K, 2K, 4K, or 8K channels.
Product design and specifications are subject to change without prior notice or obligation.
