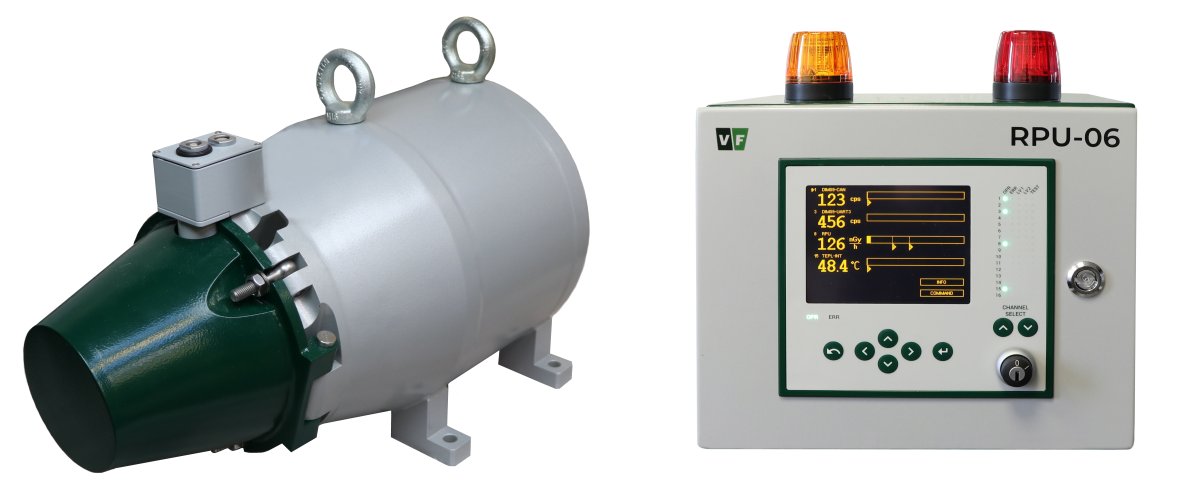

N16M-504
N-16 Primary Circuit Leak Monitor
Nuclide-specific measurement of N-16 activity and quantification of leaks from the primary to the secondary circuit.
Nuclear Facilities
Key Features
- Nuclide-specific measurement of N-16 activity and quantification of leaks from the primary to the secondary circuit
- Measurement of the total volumetric activity of gamma-emitting radionuclides in the main steam line
- Adjacent-to-line (ATL) geometry
- (1K/2K/4K/8K) MCA with the ability to identify up to ten gamma radionuclides and automatic stabilisation
- Built-in LED check source for automatic functional testing
- Data can be transmitted to two independent host systems via galvanically isolated interfaces
- Available in a seismic-resistant design in accordance with IEEE/IEC 60980-344
- Optionally can provide safety classified function, according to the EN 61226 standard for safety-related applications
Description
The N16M-504 monitor is designed to measure the volumetric gamma activity of nitrogen-16 and quantify leaks from the primary to secondary circuits in the steam generators of nuclear power plants.
During reactor outages or operation at low thermal power levels, the total gamma activity of radionuclides in the main steam line is measured. Nuclide-specific activities can also be measured and displayed.
Product design and specifications are subject to change without prior notice or obligation.
