PET-01
PET Air Monitor
Monitoring of gaseous effluents in facilities that produce and process positron emitting radionuclides.
Nuclear Medicine
Key Features
- An air monitor optimized for the detection of typical radionuclides produced in cyclotrons for PET centres
- Spectrometric measurement with NaI(Tl) detector

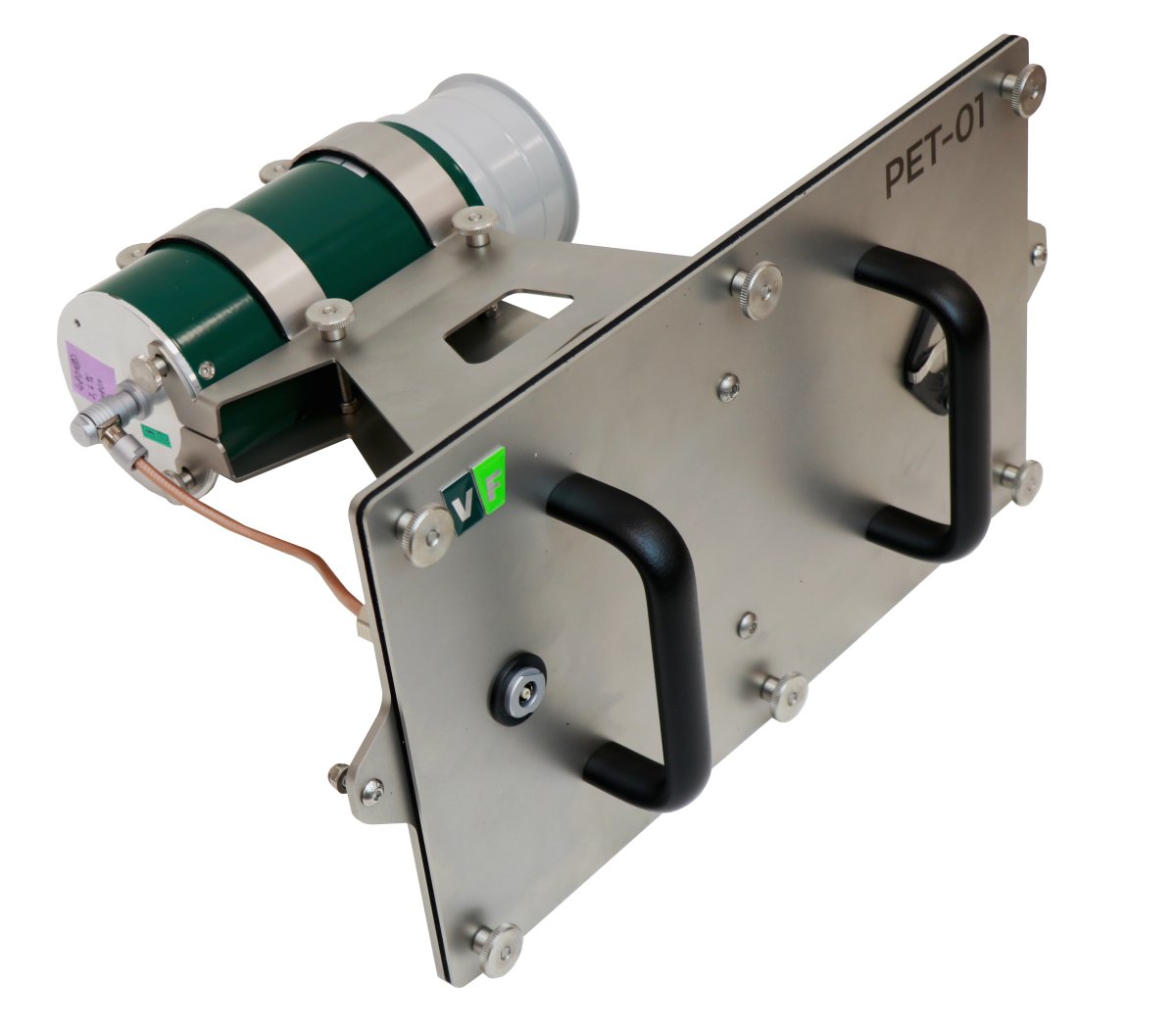

- Detector is typically installed inside the ventilation duct to ensure maximum detection efficiency
- Alternatively, the detector with an optional collimator can be adjacent to the ventilation duct
- Local display and control which can be integrated into a host monitoring system
Description
The PET-01 series monitors are primarily intended for the monitoring of gaseous effluents in facilities that produce, process and use positron-emitting radionuclides. Typical users include cyclotron facilities, PET centres, and nuclear medicine departments.

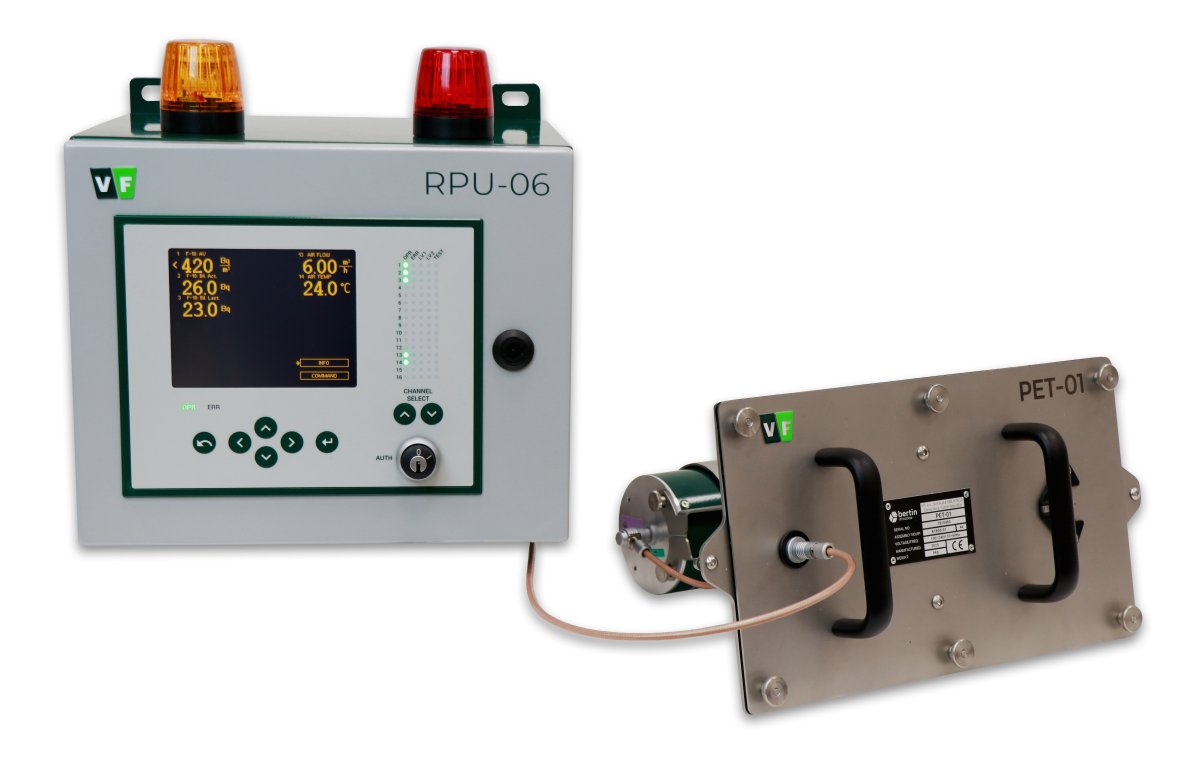

The PET-01 model comprises the following main parts:

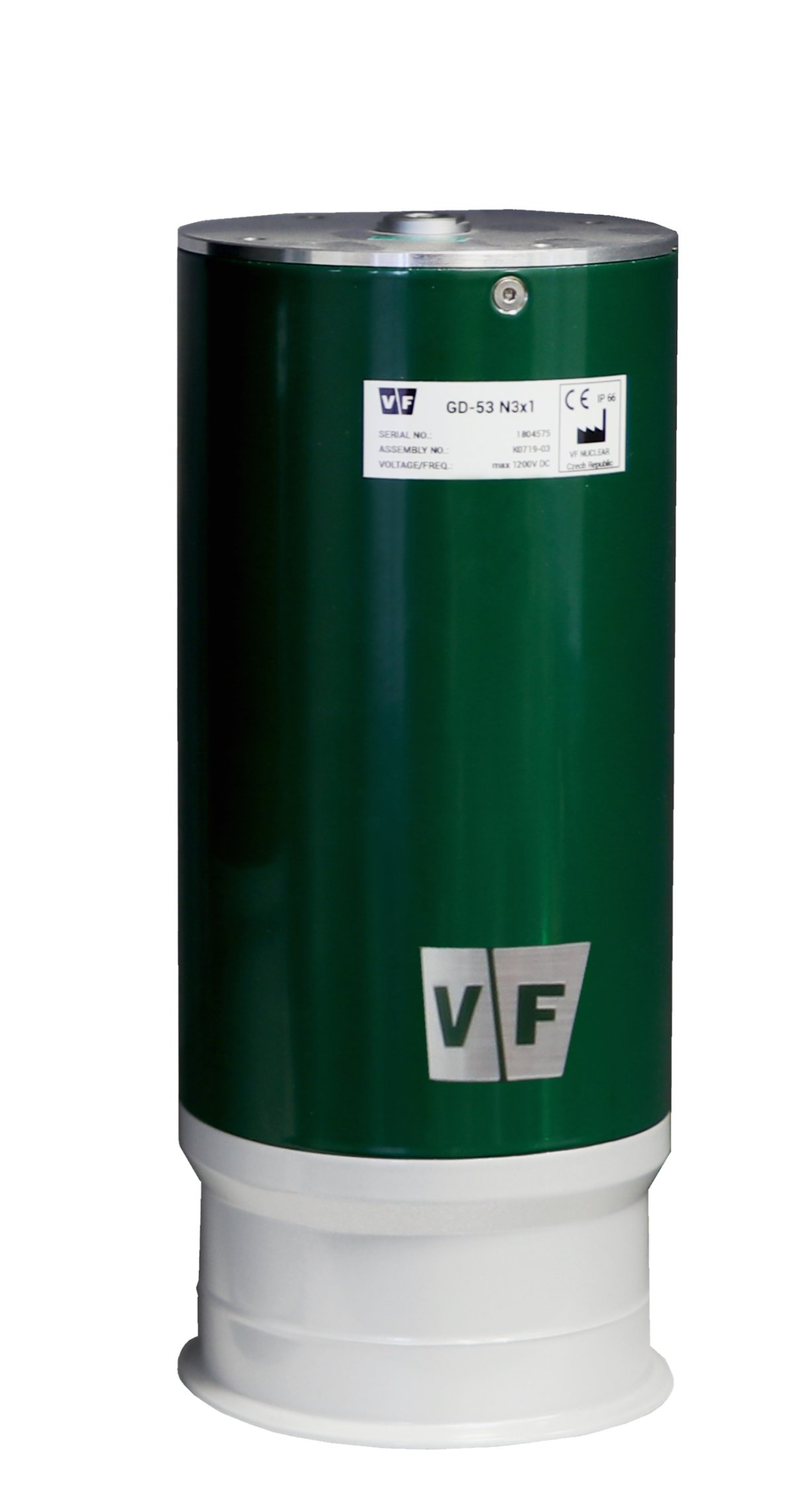

- GD-53 Gamma Detector with a NaI(Tl) scintillator,
- RPU-06 processing unit containing the DIM-09 multichannel analyser (1K with ROI analysis).
The PET-01P model comprises the following main parts:
- GD-53 Gamma Detector with a NaI(Tl) scintillator,
- RPU-06 processing unit containing the DIM-15 multichannel analyser (1K, 2K, 4K or 8K with built-in peak analysis).
Product design and specifications are subject to change without prior notice or obligation.
