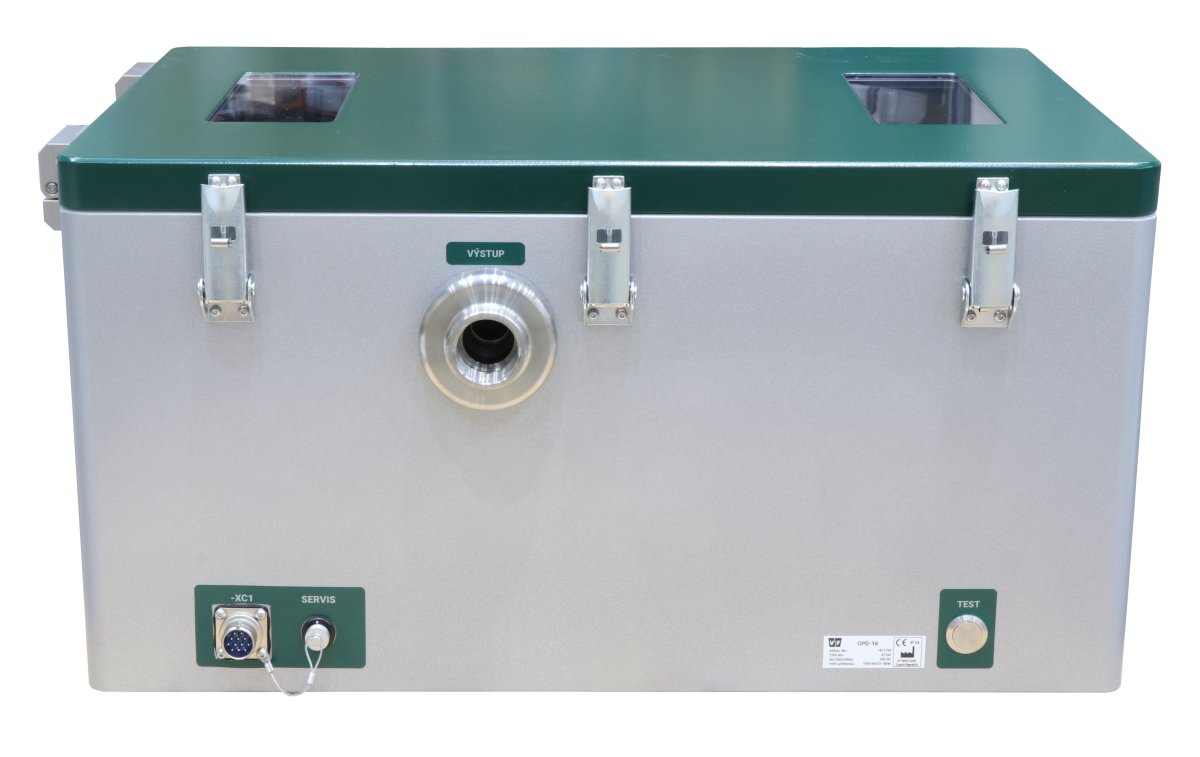

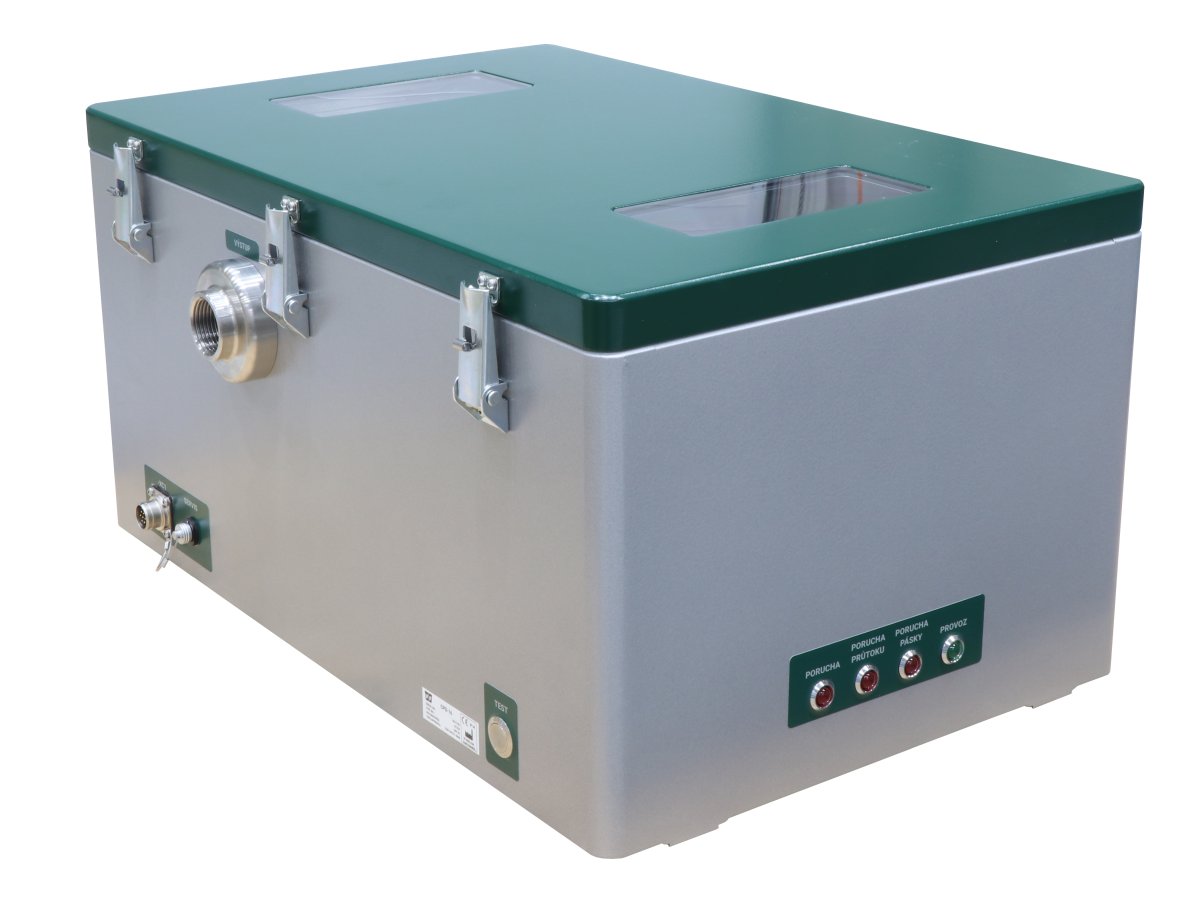

The CPD-16 measures the activity of alpha and beta aerosols in the air.
Nuclear power plants
Waste management
Research centres
Industry & manufacturing
Key Features
Very low detection limits
Moving filter tape
Operation from 3 months up to several years without filter replacement (depending on the operation mode)
Continuous or periodic filter movement
Real time and delayed measurement
Background compensation in real time
Radon/Thoron compensation
Easy maintenance
Meets the requirements of IEC 60761, IEC 61172, and IEC 61578 standards
Description
CPD-16 continuously measures the volumetric activity of alpha and beta active aerosols in the air. The detector is used to protect personnel in monitored areas against internal contamination by radioactive particles.

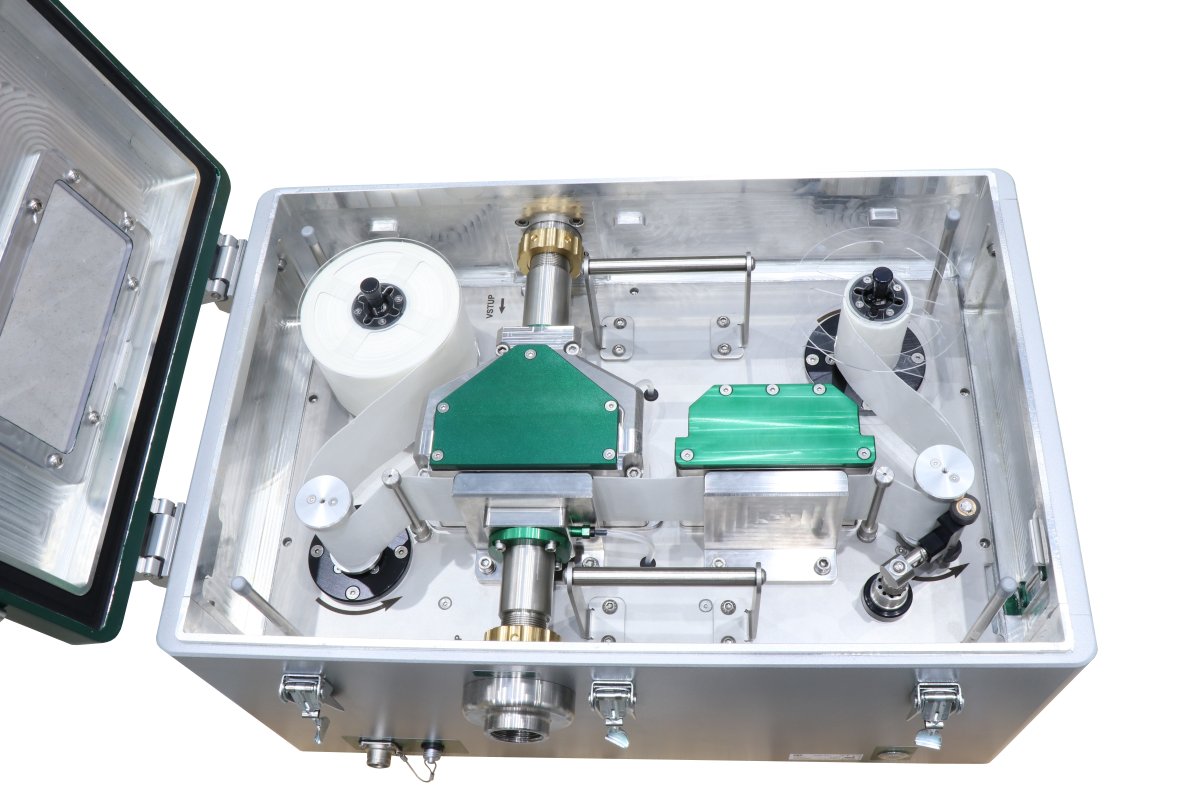

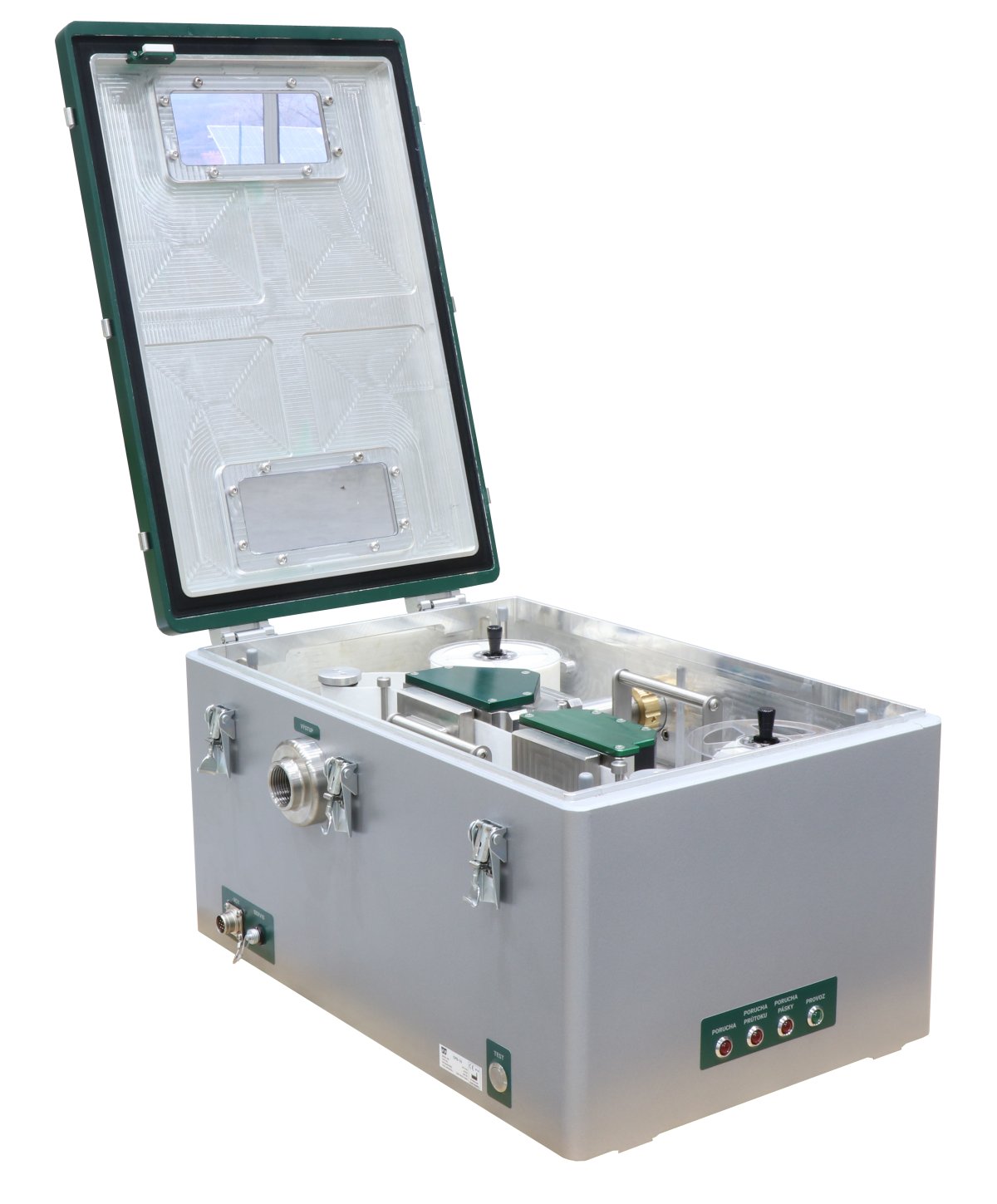

The air sample enters the detector module, which is mounted within a hermetically sealed box, through an inlet fitting. The air flow then passes through the filter tape, and exits by the outlet fitting.
